High voltage synchronous generators

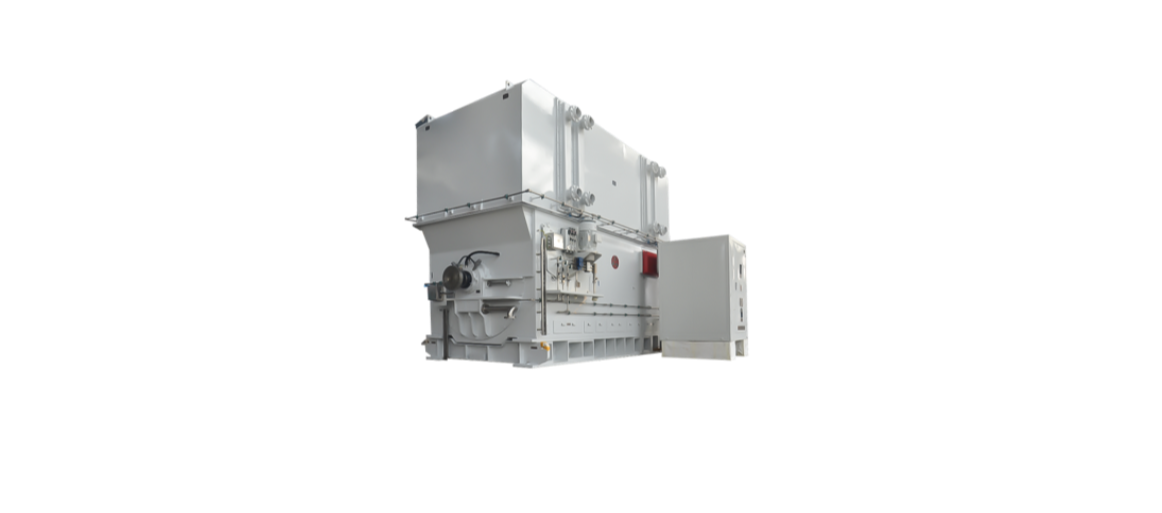

Box type brushless excitation synchronous generators

It has the characteristics of compact, light weighted, high power output, high efficiency, low noise, low vibration, safe and reliable operation and convenient use and maintenance. This series of generators can be matched with various engines such as steam turbines, industrial turbines, gas turbines and diesel engines, and are widely used in small power plants, portable power plants, self-contained power plants, residual heat and pressure power generation, biomass power generation, photothermal power generation, offshore platforms and other places. Configurable to specialized variants including: Explosion-proof, Ultra-lightweight, Air-to-Air Cooling, Low temperature, Dual shaft extension.

Product Features

High reliability

Reliable insulation;
Redundant excitation system design;
Rotor balancing grade meets G1.0
Excellent performance

Low vibration;
Compact & high efficiency;
High protection grade;
Convenient installation

Box type, complete shipment;
Maintenance free
Wide application

Suitable for small & portable power plants, self-contained power plants, waste heat power generation

Working conditions

-20℃ ~+40℃ (Standard)
-60℃ ~+60℃ (Customized)
Ambient air temperature
≤90% (at 25℃)
Humidity
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude

Specifications

Cooling method	IC81W, IC86W, IC611, IC616, IC666, IC01
Power range	2000-150000kW(2700-201000Hp)
Speed range	1500-3600rpm
Voltage range	3000-15750V
Protection grade	IP21 to IP56
Explosion proof type	Ex ec, Ex pxb, Ex pzc
Rotor material	Alloy forged steel
Mounting type	IMB3
Bearing	Endshield slide bearing
Standards	GB, IEC, EN
Certifications	IEC Ex, CCC, CE
Prime mover	Gas turbines, steam turbines, industrial turbines and diesel engines.
