Low voltage drives

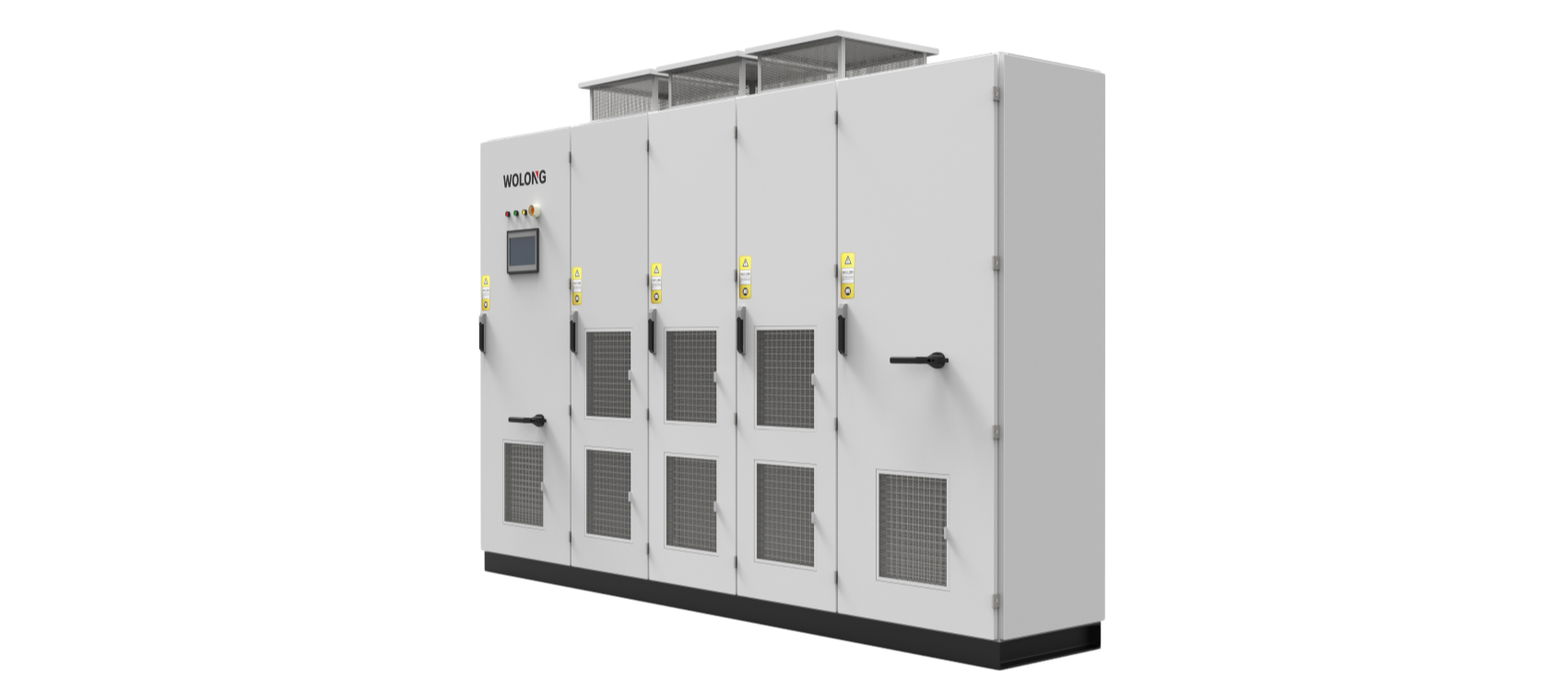

WD1000/WD3000 series variable frequency drive

Engineering Variable Frequency Drive is a new generation of all-purpose AC drive equipment suitable for all fields, two-quadrant, four-quadrant optional, strong compatibility and flexibility. It can be customized to meet the different needs of various ind

Product Features

ANPC technology

Improves output voltage quality
Reduces switching device stress
Improves system efficiency
High-performance current regulator

Eliminates cross-coupling of excitation and torque currents, enhances system stability
High torque response

Excitation current and torque current are highly decoupled, with high load carrying capability
Multi-axis control

Vector, V/F and servo control functions, capable of driving 3 vector or 8 V/F axis at the same time

Working conditions

-10℃～+40℃
Ambient air temperature
≤90% (at 25℃)
Humidity
WD3000≤1000M
WD1000≤2000M
For every 100m increase in altitude, decrease capacity by 1%
Altitude

Product Parameters

Equipment Model	WD1000/WD3000
Rated voltage	WD1000：690V/1140V WD3000：3300V/6000V
Rated Capacity	WD1000：315-5600kW WD3000：3500kVA-20MVA
Protection level	IP20~IP54, can be customized
Surface color	RAL7035, color can be customized
