Three-phase induction motors

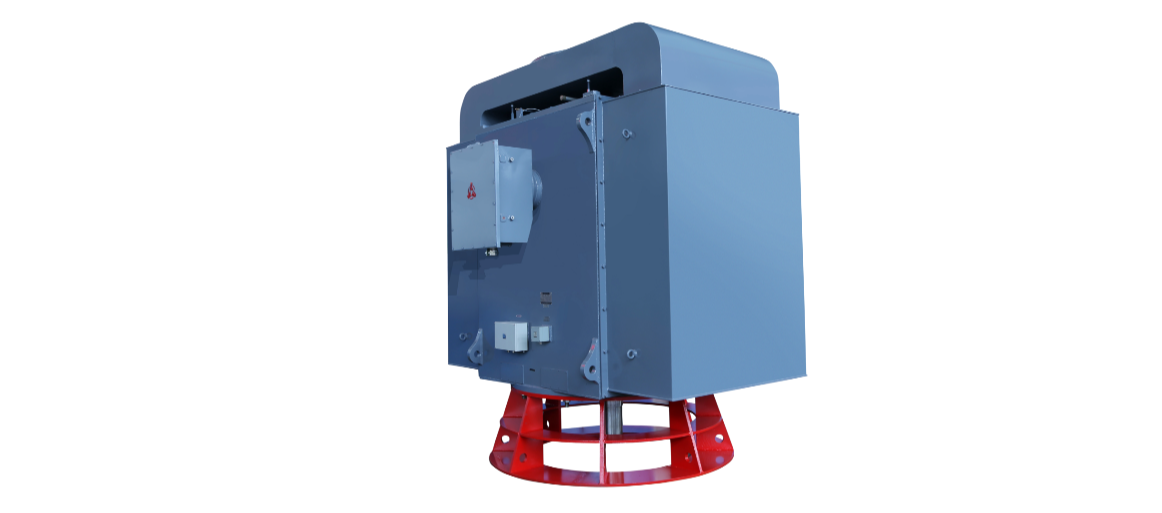

Vertical motors
Lower shaft height, higher power output, higher efficiency, lower noise, safe and reliable operation and convenient use and maintenance. This series of motors is suitable for Oil, Gas and Chemical Industry, Coal, Metallurgy, Power Plant and Machinery industry.
Product Features
-
High reliabilityReliable insulation and long lifespan;
Robust bearing structure;
Withstanding high axial thrust
-
Excellent performanceHigh efficiency: IE4 and above;
Low vibration: ≤1.2mm/s;
Low noise: ≤Lp85dB(A).
-
Customized designModular design, flexible, meet various requirements from customers.
-
Easy maintenanceExtended lubrication intervals (1.5x);
Full life cycle services
Working conditions
-
-20℃ ~+40℃ (Standard)
-60℃ ~+60℃ (Customized)
Ambient air temperature -
≤90% (at 25℃)
Humidity -
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude
Specifications
| Cooling method | IC611, IC616, IC666, IC81W, IC86W |
| Power range | 500-10000kW(670~13400Hp) |
| Speed range | 280-3600rpm |
| Frequency | Fixed(50Hz/60Hz)/Variable |
| Voltage range | 3000-13800V |
| Protection grade | Up to IP66 |
| Explosion proof type | Ex ec, Ex pxb, Ex pzc |
| Rotor material | Cast aluminum/copper bars |
| Mounting type | IMB3 |
| Bearing | Slide/Rolling bearing |
| Standards | GB, IEC, NEMA, BS, API, EN |
| Certifications | IEC Ex, ATEX, CCC, MA, CSA, UL |
