Integrated motor products

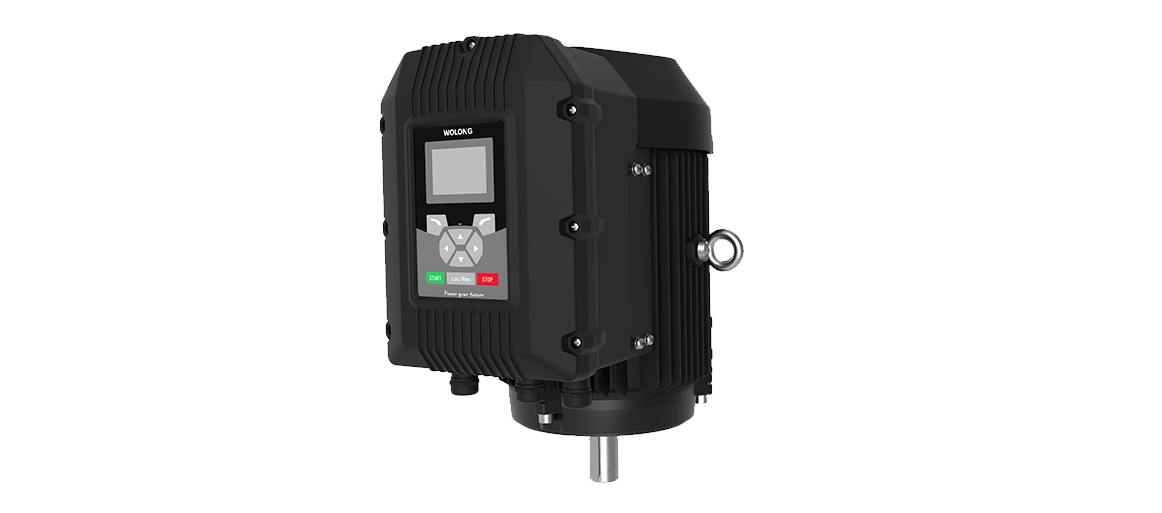

WIDM100/110 series integrated PM motor
It has the advantages of integration, high energy efficiency, high protection, small volume, etc. Easy to operate, with high reliability, low noise, and can drive and control a variety of devices.
Product Features
-
Independent R&DIndependently developed products.
-
Excellent performanceExcellent control performance, low noise, high efficiency and energy saving
-
Product featuresIntegrated design; high reliability and long service life
-
Wide applicationVarious water pump and fan loads
Working conditions
-
-15℃～+40℃Ambient temperature
-
Monthly average ≤90%Humidity
-
≤1000m.a.s.l.Altitude
Specifications
| Rated power | 0.75 ~ 18.5kW |
| Rated voltage | Three phase 380 V ~ 440 V，-10% ~ +10% |
| Rated frequency | 48 ~ 62 Hz |
| Motor control mode | Vector control |
| Speed control range | 1 : 25 |
| Overload capacity | -0.5 ~ +0.5 |
| Carrier frequency | 110% rated torque 60s |
| Command source | 2 k ~ 16 k Hz, adjusted according to the load |
| Frequency source | Control setting operation panel, digital terminals, communication |
| Motor type | Permanent magnet synchronous motor |
| Efficiency level | IE5 |
| Standards | IEC; GB |
| Certifications | CE, CCC |
| Applications | Various water pump and fan loads |
