Vibration motors

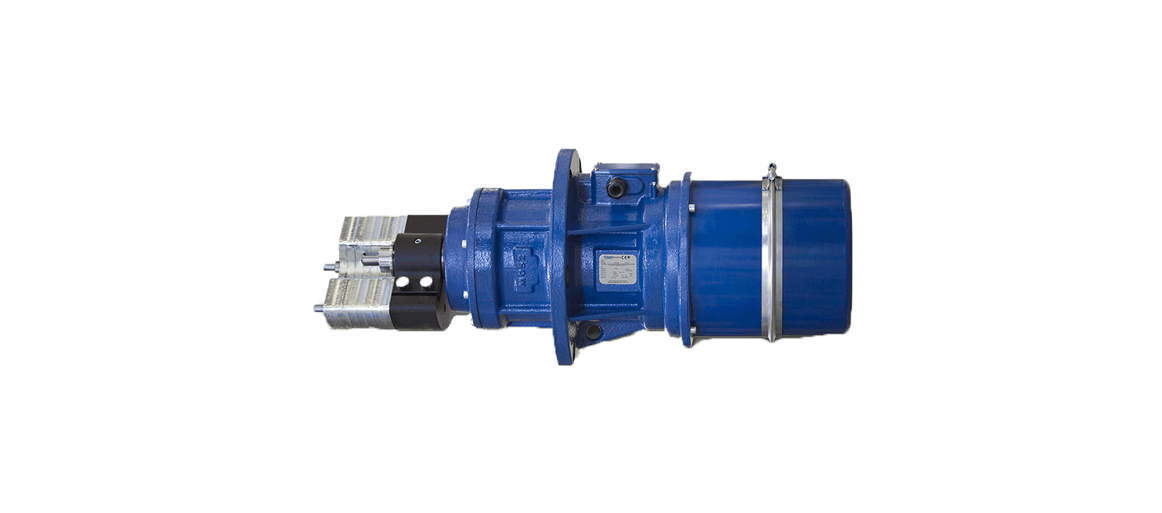

MVE-FD flanged vibrators


The MVE-FD flanged drive series vibration motors have centrifugal force ranging from 4500 to 25000kg, with 6/8 poles. Ideal choice to replace the traditional centrifugal force.

Product Features

High quality

High quality raw materials, branded bearings, high strength housing with finite element analysis.
High efficiency

Optimal power and weight ratio, S1 continuous duty, best electrical design.
High reliability

Special grease protection design, PTC thermistor, IP66.
Flexibility

Plug and play convenient installation, mass is easy to adjust.

Operating Conditions

-20℃～+40℃

Ambient temperature
Monthly average ≤90%

Relative humidity
≤1000m.a.s.l.

Altitude

Product Parameters

Frame material	Iron enclosure: SIZE 80 FD ~ 110FD
Rated power	3.06 ～ 16.0kW
Rated voltage	220 to 690V
Rated speed	50Hz: 750 ~ 1000rpm
Duty	S1
Insulation	Class F
Protection grade	IP66
Cooling method	IC410
Certifications	ATEX ExII3D and CRUUS Conform to UL1446 and CSA 22.2 No 0-10
Applications	Vibrating screens, grizzlies and vibrating feeders, mainly in quarries and mines, foundry and recycling.

Typical applications

Green Industry

According to the report of the International Energy Agency (IEA), industrial energy consumption accounts for 37% of global total energy consumption and 24% of global carbon dioxide emissions.

Learn more

Related products

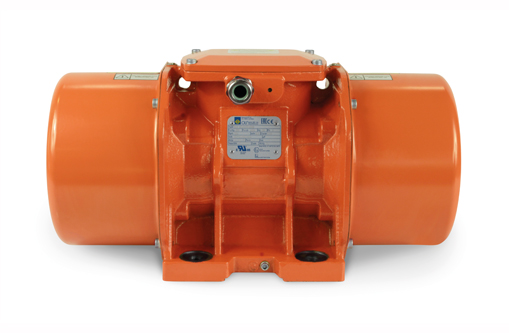

MVE standard series

MVE series vibration motor introduces Italian advanced technology and process products, can provide continuous vibration source for vibrating, screening, conveying, blanking and other equipment in all walks of life.

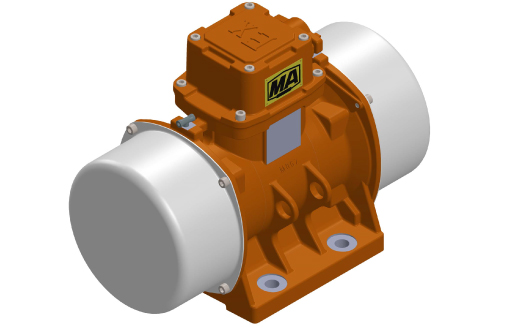

YBZD series vibration source explosion-proof motor

This flameproof motor is for underground coal mine gas environment (non-mining face), with methane or coal dust flammable gas or steam and air formed explosive mixing place.

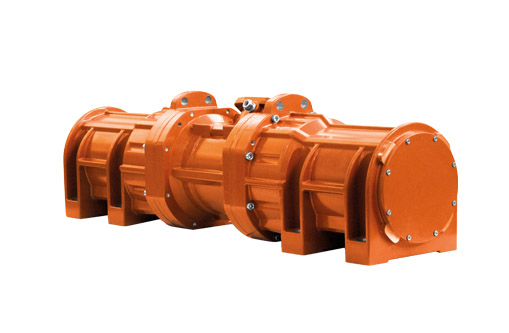

MVE-SV screen vibrators

SV or XY series vibration motor is a long motor, the working principle is the same as the standard vibration motor, fixed on the equipment through the foot. They are 4-pole motors with different operating voltages and can be controlled by frequency converter. The centrifugal force ranging from 3500 to 8000kg. The centrifugal force can be adjusted for each model,and widely used in quarry, mining, drilling fluid recovery system on the material separation, vibration screening.
