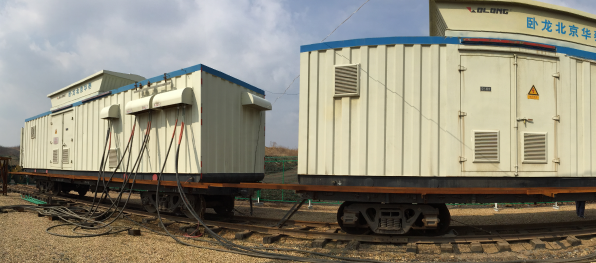

Pre-assembled traction DC box transformer

YBWQZ pre-installed DC traction AC power station is a complete box-type substation which combines high-voltage switchgear, traction rectifier transformer, traction rectifier, low-voltage DC switchgear and a complete set of intelligent comprehensive monito

Products and Solutions
Motors and Drives
Transformers
Integrated equipment

Main Advantages

Reasonable design and compact structure
High integration ability and convenient transportation
Convenient installation and easy debugging

Operating conditions

-15℃～+40℃

Ambient air temperature
≤90% (when the temperature is 25℃)

Monthly average maximum relative humidity of ambient air
≤1KM

Altitude (please specify otherwise for special circumstances)

Specification parameter

Primary voltage	10/35kV
Secondary DC voltage	750V/1500V
