Utility scale ESS

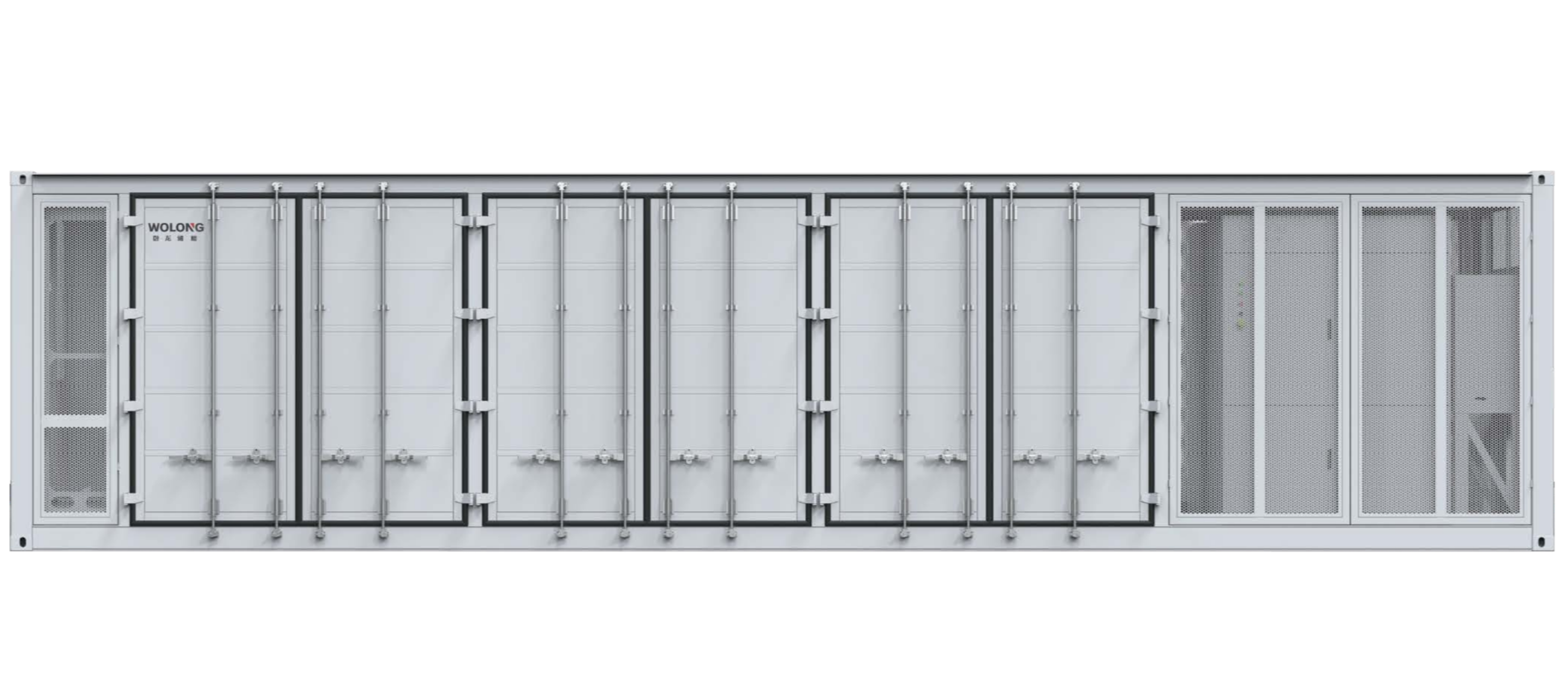

WL-ESS-3760kW/7524kWh-L
With the company's utility-scale storage systems, businesses and utilities can unlock the full potential of clean energy, ensuring reliable power supply.
Main Advantages
-
High BalancePrecision control of temperature difference; 0ne-to-one control, eliminating inter-cluster circulation; Mitigating the weak link effect
-
High IntegrationAC/DC integrated design & cabin design to save space
-
Simplified MaintenanceModular design, plug-and-play
-
Safe and ReliableNo parallel design,cluster-level isolation,multi-level linked protection
Operating Conditions
-
-20℃~+50℃(>45℃ derating)Operating Temperature
Specifications
| Battery and converter container dimensions | 12192*2600*3000mm |
| Transformer container dimensions | 6000*3000*3000mm |
| Battery and converter container weight | 70 ton |
| Transformer container weight | 19 ton |
| Container conventional color | RAL7035 |
| Protection grade | IP54 |
| Fire protection system | Sevofluoropropane/Perfluorohexone (optional) |
| Communication interface | Ethernet |
| Communication protocol | ModbusTCP/RTU,IEC104,IEC61850 |
| Standards | GB/T 34133,GB/T 34120,GB/T36276,GB/T 34131 |
