Residential ESS

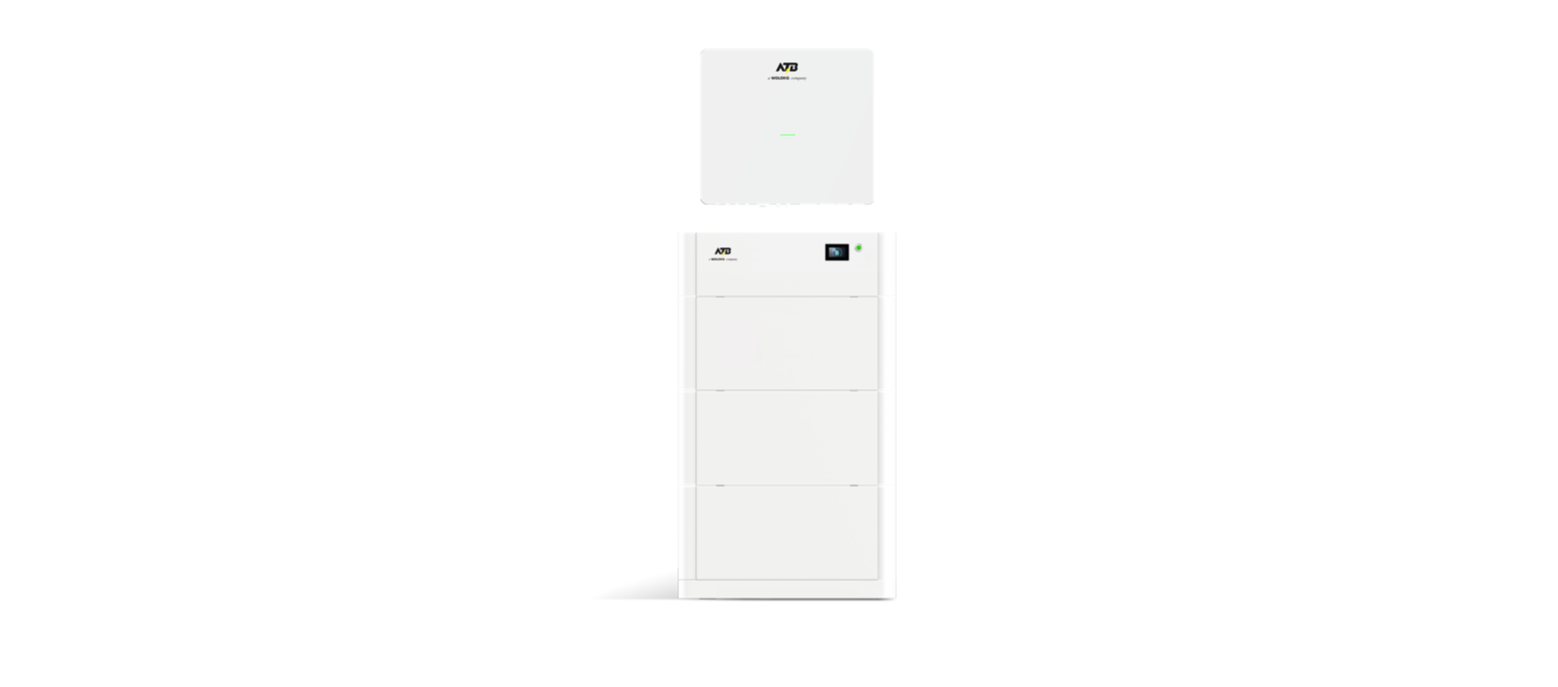

Three phase residential energy storage system-EHTS 3000~20000X-5~40H-S-HCB

This residential ESS comes with a 3~20kW hybrid three-phase inverter and 5~40kWh high voltage battery modules.The system has high conversion efficiency, faster charging and discharging rates, it can bring the efficient, safe and reliable clean energy to the green house, and optimize the energy cost for homeowners.

Product Advantages

Higher Reliability

IP65 Outdoor&Indoor use;SiC technology, longer lifespan;Plug-in design, easy to install
High Capability

15 units in parallel;2 independent ports for battery;Support mixture use of old&new battery
Smart Monitoring

Auto sleep;VPP interface ready;Cloud+ Smart data analysis
Strong Load Adaptability

UPS function;10ms on/off-grid switchover

Operating conditions

Charge: 0~55°c, Discharge: -20~60°c

Operating temperature

Technical Parameters

Inverter Rated Output Power	3000/5000/6000/8000/10000/12000/15000/18000/20000W
Rated Capacity Range	5.12 ~ 40.96kWh
Usable Capacity Range	4.6 ~ 36.86kWh
IP Protection	IP65 (Outdoor)
Battery Chemistry	LFP (LiFePO4)
Operating Temperature Range	Charge：0~55℃, Discharge：-20~60℃
