AEM Electrolyser

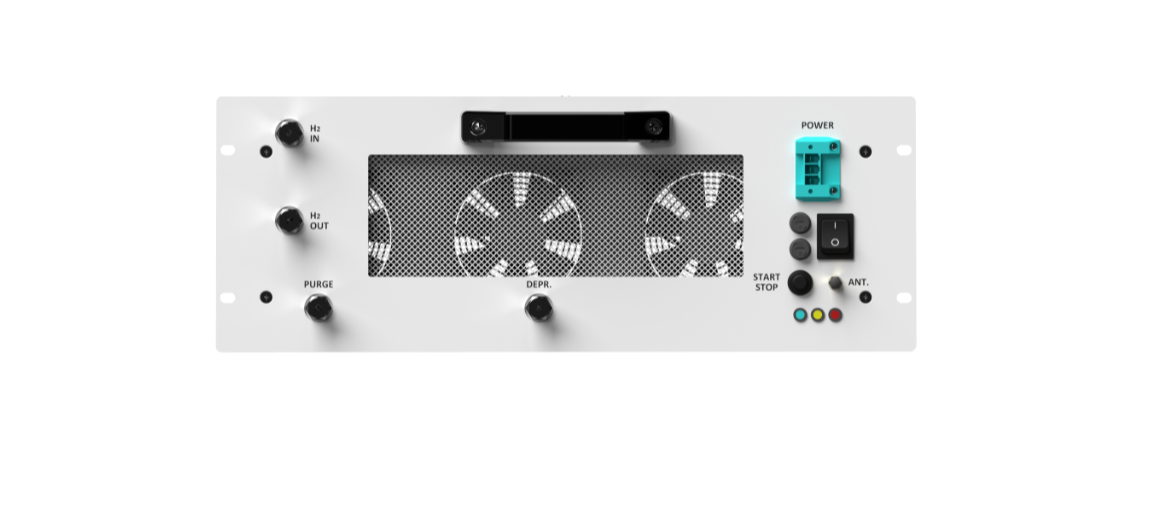

Dryer DRY2.1


The dryer is maintenance free and can be installed in a standard 19 inch cabinet.

Operating Condition

35 bar

Output pressure
5 - 45°C

Ambient operative temperature range
Maintenance-free

Maintenance

Specifications

Hydrogen drying rate	Up to 2.5 Nm³/hr
Ambient operative humidity range	Up to 95% Rh, non-condensing
Hydrogen output purity	> 99.999% in molar fraction
Average dewpoint and impurities	< -70 °C (-94 °F), compliant with ISO14687
Operative power consumption	(H₂O < 5 ppm, O₂ < 5 ppm)
Stand-by power consumption	10W
Power supply	AC 200-240 V, 50/60 Hz
Space inside cabinet	4U
Weight	23 kg
