Motors for washing machine

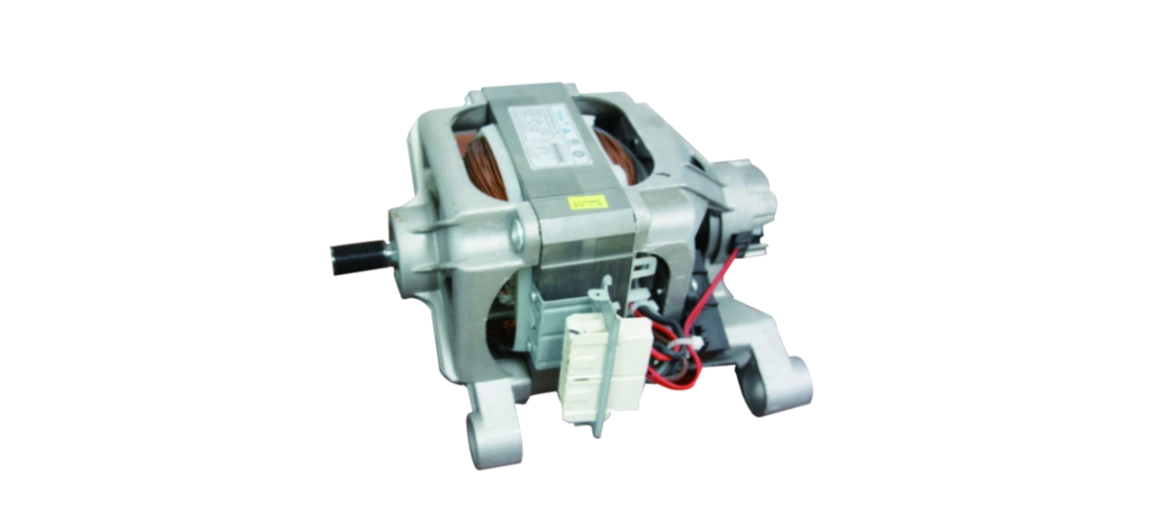

Series excitation speed regulating motor for AC series drum washing machine

This series of products have large output torque, strong overload capacity, high reliability and simple control, and are widely used in series excitation speed regulation products of drum washing machines.

Core points

Speed regulation

High speed and high efficiency, which can be realized by regulating voltage.
Safe and reliable

Built-in resettable protector, safe and reliable

Operating conditions

- 20 ℃ ～ + 60 ℃

Ambient air temperature
≤ 90% (at 25 ℃)

Monthly average humidity
≤ 1000 m a.s.l.

Altitude

Specifications

Voltage	220-240V
Frequency	50/60HZ
Rated current	Washing: 3.0~4.2A, dehydration: 1.8~2.5A
Output rating	Washing: 30~50W, dewatering: 180~300W
Working speed	Washing: 500-1000RPM, dehydration: 5000-20000RPM
Noise	≤75dB
Rotating direction	CW/CCW
