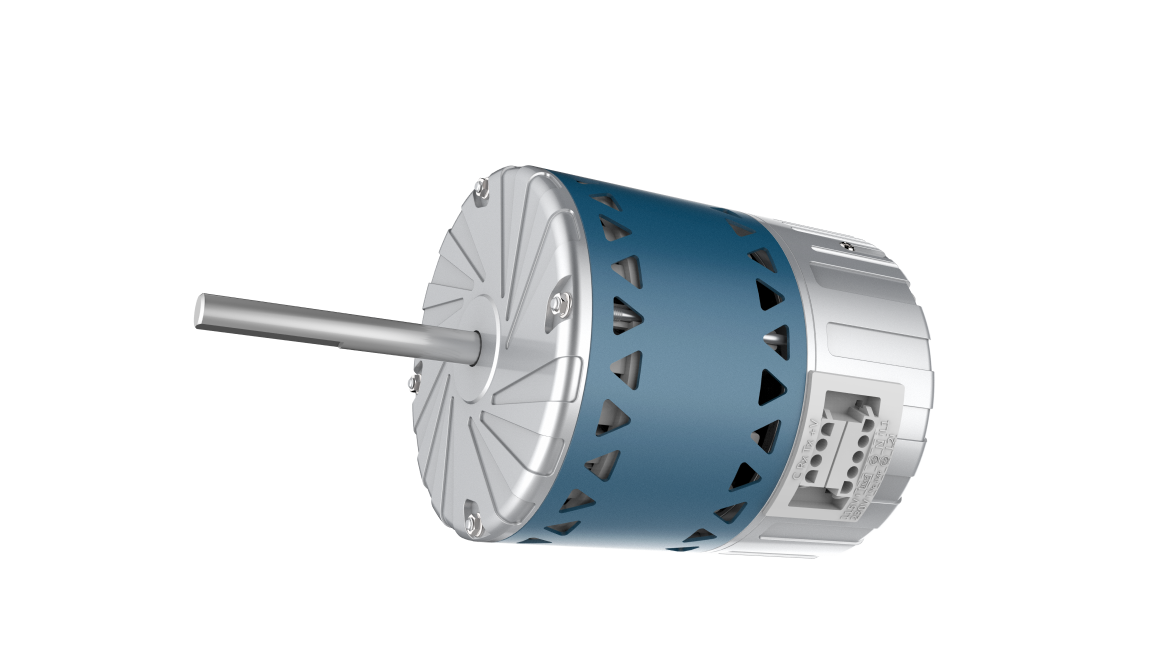

EC motors

EM48 series

A new type of electronic commutation motor is widely used in commercial blowers and industrial HVAC. This series of motors provide consumers with multiple options of drive and control separation, drive and control integration, single-phase and three-phase to meet consumers' needs for efficiency, comfortness and reliability.

Product features

Independent R&D

Independent developed
Multi-function

Including analog 1 ~ 10V control, digital signal input, remote control and serial MODBUS monitoring.
Safe and reliable

Safe and reliable
Widely used

Ventilation, air conditioning, heat pump, refrigeration, agriculture and other industrial and commercial blower occasions.

Specification parameter

Power	0.2 ~ 1KW
Supply voltage	115, 1 - 208 ~ 230、1 - 460 ~ 480、3 - 380 ~ 480VAC ± 10%
Efficiency	≥ IE4
Mode of speed regulation	Serial port, PWM, 0 ~ 10V, RS485, five-speed regulation
The protection grades	IP20 ~ IP66
Rotation speed	1 ~ 1800r/min
Frequency	50/60Hz
Motor steering	Support CW and CCW motor steering options.
Product features	Constant torque and speed
Product certification	CCC, UL, CE
