EC motors

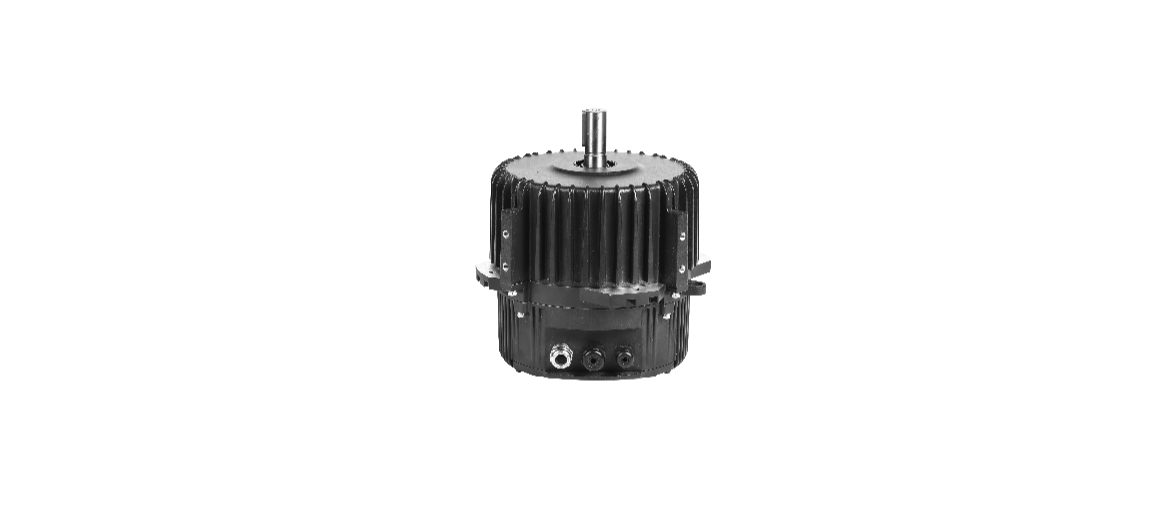

EC132 series

The new electronic commutation motor can replace the traditional three-phase asynchronous motor and be used in commercial blowers and industrial HVAC, etc. EC132 series provides consumers with the choice of high power section to meet their demand for higher energy efficiency.

Product features

Independent R&D

Independently develop a series of products
Multi-function

Including analog 1-10V control, digital signal input, remote control and serial MODBUS monitoring
Safe and reliable

Multiple motor protection mechanism, high protective motor structure, unique appearance design and convenient installation
Widely used

Ventilation, air conditioning, heat pump, refrigeration, agriculture and other industrial and commercial blower occasions.

Specification parameter

Power	1.5 ~ 3.0KW
Voltage	3 - 380 ~ 480VAC ± 10%
Efficiency	≥ IE4
Speed regulation	RS485, PWM, 0 ~ 10V, five-speed regulation
Protection grades	IP44 ~ IP66
Rotational speed	200 ~ 1800r/min
Frequency	50/60H
Motor steering	Support CW and CCW motor steering options.
Product features	Constant torque and speed
Certification	UL, CE
