EC motors

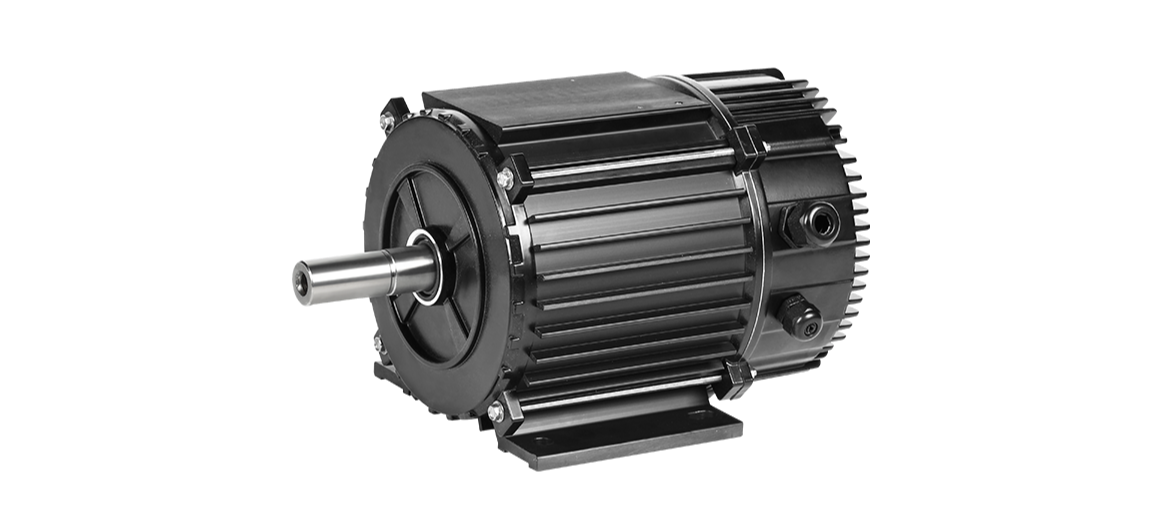

EM56 series

A new type of electronic commutation motor is widely used in commercial blowers and industrial HVAC. In order to solve the problems of small installation space and inconvenience for consumers, a new series of EM56 with small volume is developed, which provides consumers with a more convenient horizontal installation scheme.

Product features

Independent R&D

Independent research and development of the whole series of motor products
Multi-function

Including analog 1-10V control, digital signal input, remote control and serial MODBUS monitoring.
Safe and reliable

Multiple motor protection mechanism, unique appearance design and convenient installation.
Widely used

Ventilation, air conditioning, heat pump, refrigeration, agriculture and other industrial and commercial blower occasions.

Specification parameter

Power	1.1 ~ 2.2KW
Voltage	3 - 380 ~ 480VAC ± 10%
Efficiency	≥ IE4
Speed regulation	RS485, PWM, 0 ~ 10V, 5th speed regulation
Protection grades	IP55 ~ IP67
Rotation speed	1 ~ 2200r/min
Frequency	50/60Hz
Motor steering	Support CW and CCW motor steering options.
Product features	Constant torque and speed
Certification	UL, CE
