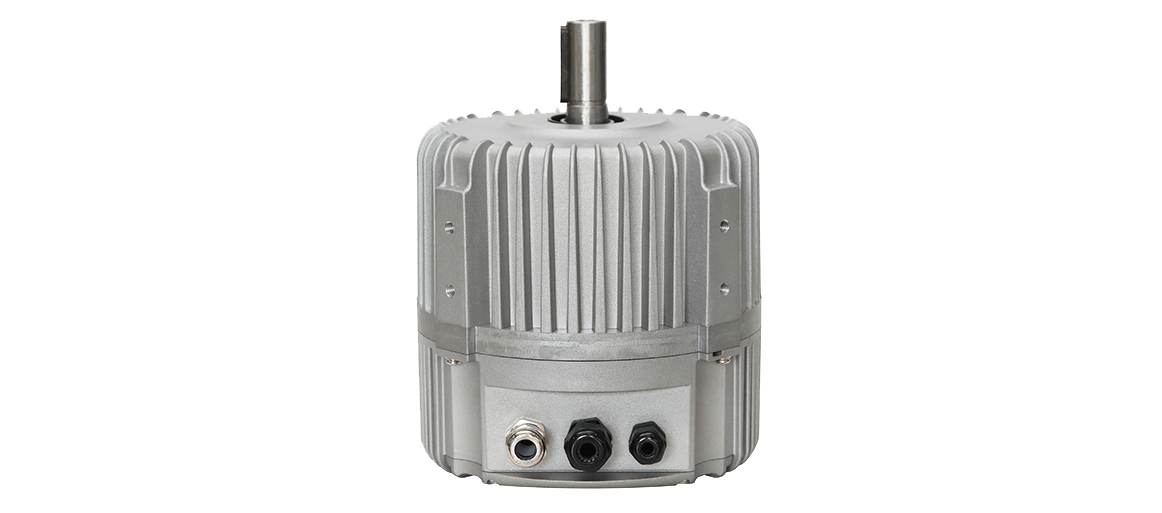

EC motors

EC112 series

A new type of electronic commutation motor is widely used in commercial blowers and industrial HVAC occasions. The products have the characteristics of integration of machinery and control, high efficiency and energy saving, variable speed control, intelligent communication, fault diagnosis, safety and comfort.

Product features

Independent R&D

Independently develop a series of products
Multi-function

Including analog 1-10V control, digital signal input, remote control and serial MODBUS monitoring.
Safe and reliable

Multiple motor protection mechanism, high protective motor structure, unique appearance design and convenient installation.
Widely used

Ventilation, air conditioning, heat pump, refrigeration, agriculture and other industrial and commercial blower occasions.

Specification parameter

Power	1.1 ~ 1.8KW
Voltage	3 - 380 ~ 480VAC ± 10%
Efficiency	≥ IE4
Speed regulation	RS485, PWM, 0 ~ 10V, five-speed regulation
Protection grades	IP44 ~ IP66
Rotational speed	1 ~ 2200r/min
Frequency	50/60H
Motor steering	Support CW and CCW motor steering options.
Product features	Constant torque and speed
Certification	UL, CE
