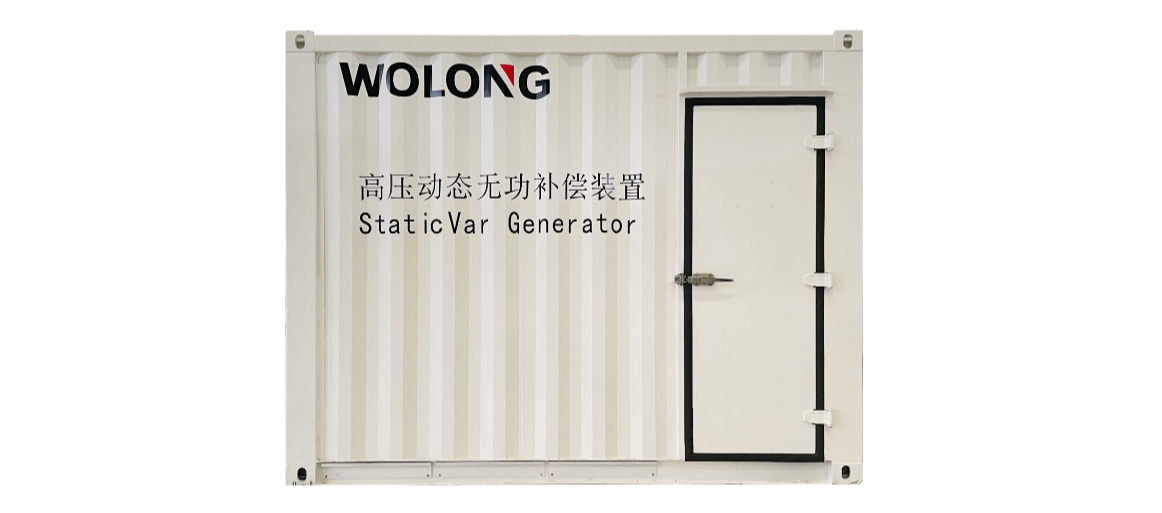

High voltage chain-type static var generator (outdoor)
The product utilizes switchable high-power power electronic devices (IGBT) to form a self-commutated bridge circuit, which is connected in parallel to the power grid through a reactor to appropriately adjust the amplitude and phase of the output voltage o
Product Features
-
Technical characteristicsFast response, wide adjustment range , small footprint, low loss
-
Compensation modeInductive or capacitive compensation reactive power can be generated, with active filtering ability to track and manage harmonic currents, and can support the grid voltage.
-
Heat dissipationAir-cooled, water-cooled, air-conditioned, etc.
-
TopologyStar or delta connection
Operating Conditions
-
-15℃～+40℃Ambient air temperature
-
≤90% non-condensing (when the temperature is 25℃)Ambient air monthly average maximum relative humidity
-
≤1KMAltitude
Product Parameters
| Rated Voltage | 6-35kV |
| Rated Capacity | ±500-120000kVar |
| Installation | container type |
| Protection level | IP54 |
| Cooling method | air-cooled, water-cooled, air-conditioned (35kV SVGs are water-cooled) |
| System Compositions | Start-up system, power system, control system, cooling system |
