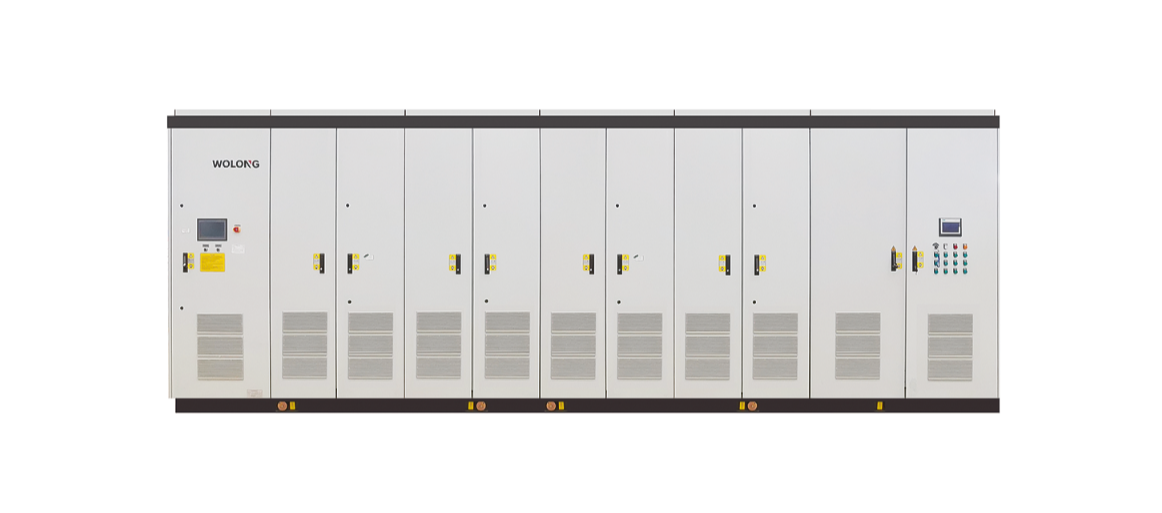

5100 series high power water-cooled high voltage VFD

The product adopts voltage source multi-level topology, the power system adopts water-water cooling solution, power cell with dual water circuit parallel design, water-cooled pipe adopt quick connectors, support online plugging and unplugging. It is mainly used in petrochemical, metallurgy, energy storage, military industry, test station and other fields.

Product Features

Optimized water circuit design

power cells with dual water circuits in parallel to support online plugging and unplugging.
Modular design of power cell

The power cell is a modular assembly design with strong expansion ability
High-voltage power components

selection of high-voltage IGBT power components
Large capacity output

Meet the user's core load and key equipment drive control requirements

Operating Conditions

0℃ ～ +40℃

Ambient air temperature
≤ 90% (at 25℃)

Monthly average humidity
≤ 1000m.a.s.l.

Altitude

Product Parameters

Model	RMVC/WD (5100 Water-cooled Series )
Capacity Range	10000kVA ~ 80000kVA (10kV as example)
Input Voltage	6kV ~ 35kV
Output Voltage	6kV ~ 13.8kV
System Composition	Pre-charging cabinet, phase shifting transformer, water-cooled power cell cabinet, water-cooling system cabinet, control cabinet
IGBT Voltage	1700V, 3300V, 4500V
Transformer Type	Dry type phase shifting transformer; Oil type phase shifting transformer
