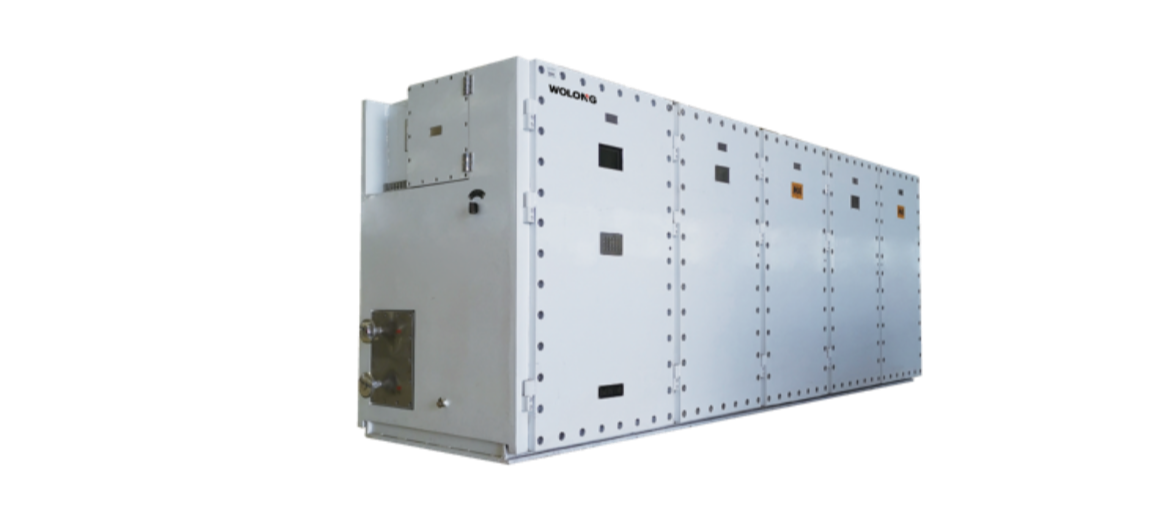

Mine explosion-proof and intrinsically safe (chain type) static var generator

The product utilizes switchable high-power power electronic devices (IGBT) to form an automatic phase-changing bridge circuit, which is connected in parallel to the power grid through a reactor, and appropriately adjusts the amplitude and phase of the out

Product Features

Technical characteristics

Fast response speed, wide adjustment range, small footprint, low loss
Compensation mode

Inductive or capacitive compensation reactive power can be generated, with active filtering ability to track and manage harmonic currents, and can support the grid voltage.
Heat dissipation method

Air-cooled and water-cooled
Topology

Star or delta connection

Operating Conditions

-15℃～+40℃

Ambient air temperature
≤90% non-condensing (at temperature 25℃)

Ambient air monthly average maximum relative humidity
≤1KM

Altitude

Product Parameters

Rated voltage	0.66kV/1.14kV/3.3kV/6kV/10kV
Rated capacity	±300kVar/500kVar/600kVar/1800kVar/1800kVar2500kVar/3200kVar/5000kVar
Explosion-Proof Type	Mine Explosion-Proof and Intrinsically Safe Type
Explosion-proof mark	Exd【ib】I
Protection level	IP54
Cooling method	Air-Cooled/ Water-cooled
System composition	Start-up system, power system, control system, cooling system
