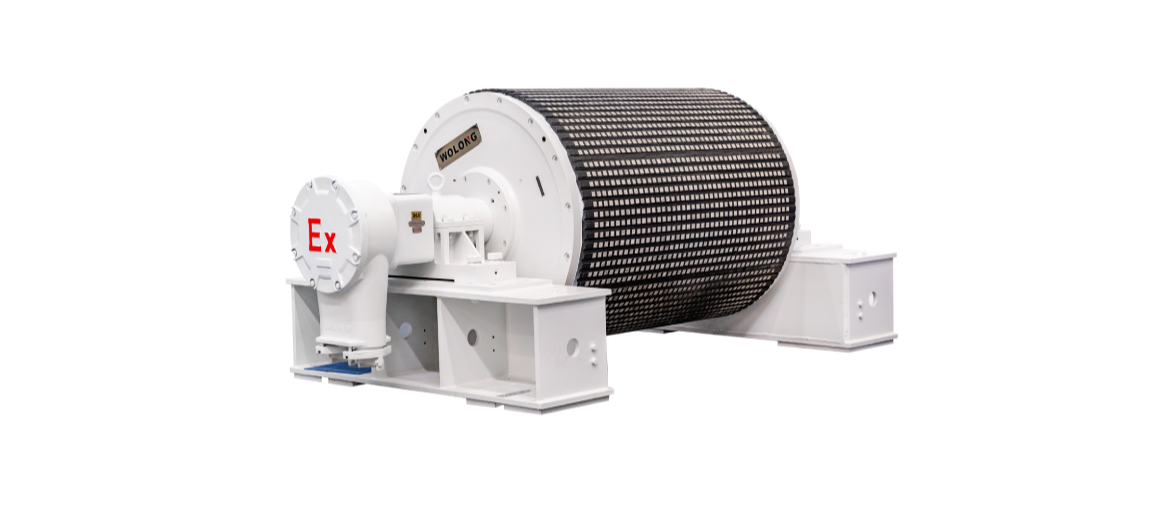

Flameproof permanent magnet synchronous electric roller for Coal Mining
Compared with the traditional driving system, it directly drives the load, with compact structure and convenient installation, which greatly saves the installation space; The efficiency reaches IE4 and above, and the comprehensive energy saving rate reaches over 30%; Starting with low frequency and large torque, the starting torque can reach 2.5 times, which solves the problem of starting under heavy load.
Product Features
-
Integrated motor with direct driveIntegrated design to achieve simple structure and direct drive;
-
Excellent starting performanceLarge output torque;
Low starting current;
Stable heavy-load starting
-
High efficiencyHigh operation efficiency;
Low maintenance cost;
Remarkable economic benefits
-
Wide applicationWidely used in bulk materials conveyors such as Coal Mining, Metallurgy, Petroleum, Ports etc.
Working conditions
-
-20℃～+40℃
Ambient air temperature -
≤90% (at 25℃)
Humidity -
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l. (Customized)
Altitude
Specifications
| Cooling method | IC37W |
| Power range | 75- 315kW(100-430Hp) |
| Roller diameter | φ630-1250 |
| Belt speed range | 2-5m/s (belt speed) |
| Frequency | 5~150Hz |
| Voltage range | 660V/1140V |
| Protection grade | IP55 |
| Explosion proof type | Ex db |
| Bearing | Rolling bearing |
| Standards | GB, IEC |
| Certifications | CCC, MA |
| Applications | Belt conveyor, hoister |
