Permanent magnet motors

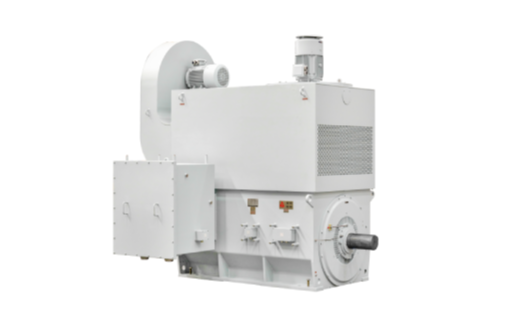

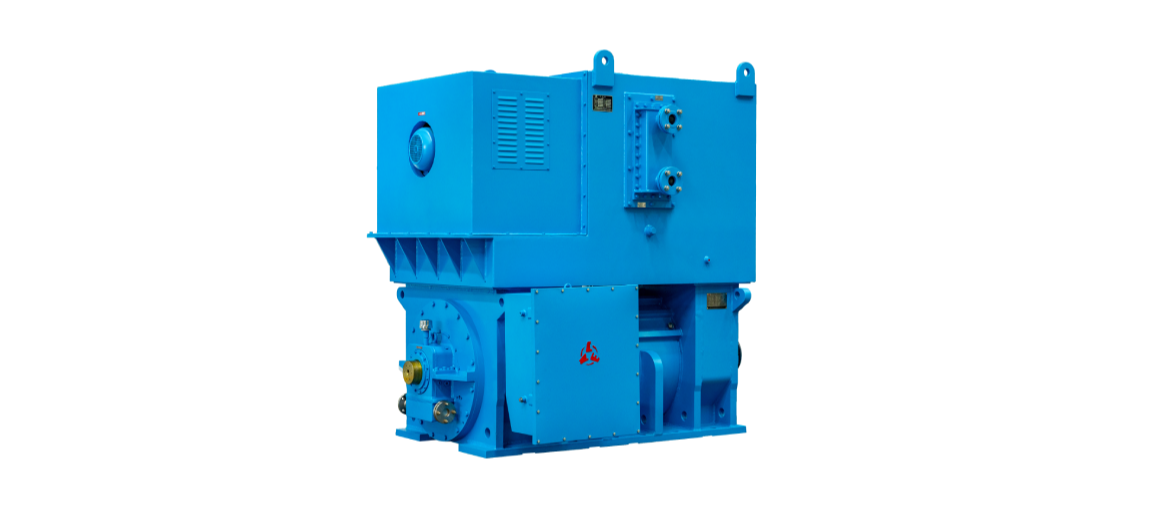

High speed permanent magnet synchronous motors
It has the characteristics of high speed, high efficiency, high power density, compact, light weighted, low noise, low vibration, high reliability and convenient use and maintenance. It can maintain high-efficiency output in high-speed operation. It has excellent overload capability and dynamic response, can be used to directly drive loads such as compressors, high-speed fans, high-speed water pumps and high-speed test platforms in industries such as chemical industry, power plant, steel, refrigeration, metallurgy, automobile, aerospace and military industry.
Product Features
-
High efficiencyIE4 and above;
Power factor up to 0.96;
Comprehensive energy saving 10%-30%
-
High-speed direct driveDirect drive load;
Compact, light weighted;
High power density
-
Low noise and vibrationOptimized electromagnetic design;
Stable operation;
Significantly lower noise
-
Excellent performanceWide speed regulation range;
High speed regulation accuracy;
Overload capacity up to 2.0 times
Working conditions
-
-20℃～+40℃
Ambient air temperature -
≤90% (at 25℃)
Humidity -
≤1000m.a.s.l.
Altitude
Specifications
| Cooling method | IC86W, IC37W, IC666 |
| Power range | 1000-10000kW(1360-13600Hp) |
| Frame size | H355-800 |
| Speed range | 4000-20000rpm |
| Frequency | ≤667Hz |
| Voltage range | 3000-10000V |
| Protection grade | IP55, IP56 |
| Explosion proof type | Ex pxb |
| Mounting type | IMB3, IMB35 |
| Bearing | Rolling, sliding, magnetic levitation |
| Applications | Compressors, fans, water pumps and other high-speed loads. |
