Motors for specific applications
Permanent magnet motor for elevators

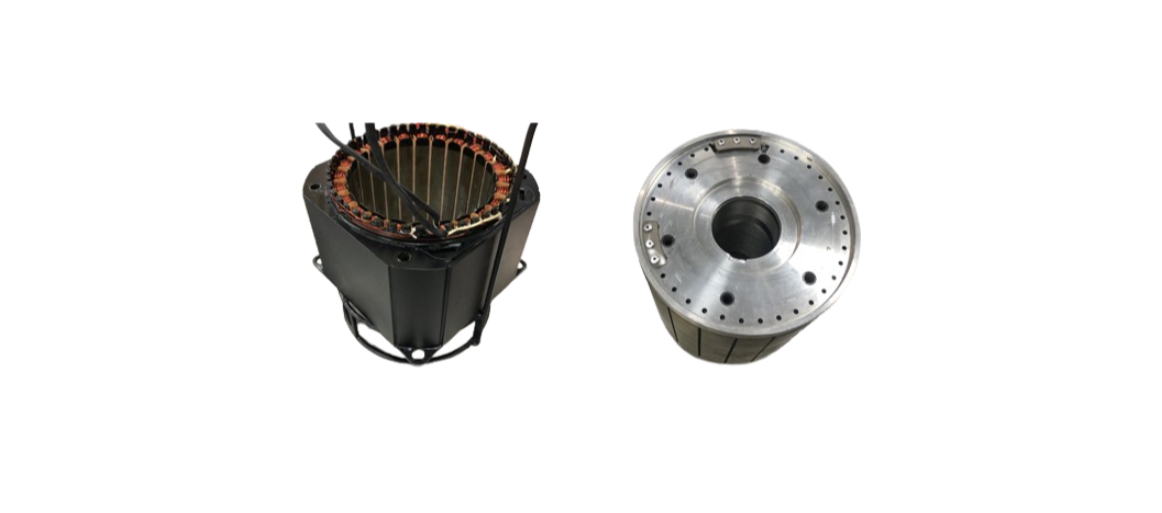

Integrated traction machine, the linear stator is fixedly connected to the traction machine base, and the rotor is fixedly connected to the traction machine shaft. It has a compact structure and high system efficiency.
Product Features
-
Independent R&DIndependently developed products.
-
Low-speed direct driveLow-speed direct drive with a simple and efficient system
-
Compact structureCentralized winding design for a compact structure.
-
Excellent performanceUneven air gap with small torque ripple.
Working conditions
-
-15℃～+40℃Ambient temperature
-
Monthly average ≤90%Humidity
-
≤1000m.a.s.l.Altitude
Specifications
| Rated Power | 2.3 ~ 11kW |
| Rated voltage | 380/513V |
| Mounting option | B5 |
| Duty | S9 |
| Insulation | Class F |
| Accelerating torque | 1.2 ~ 1.5 times rated torque |
| Rated speed | 477 ~ 836 rpm |
| Efficiency level | IE4 |
| Certifications | At the customers' request |
| Applications | Elevator traction machine |
