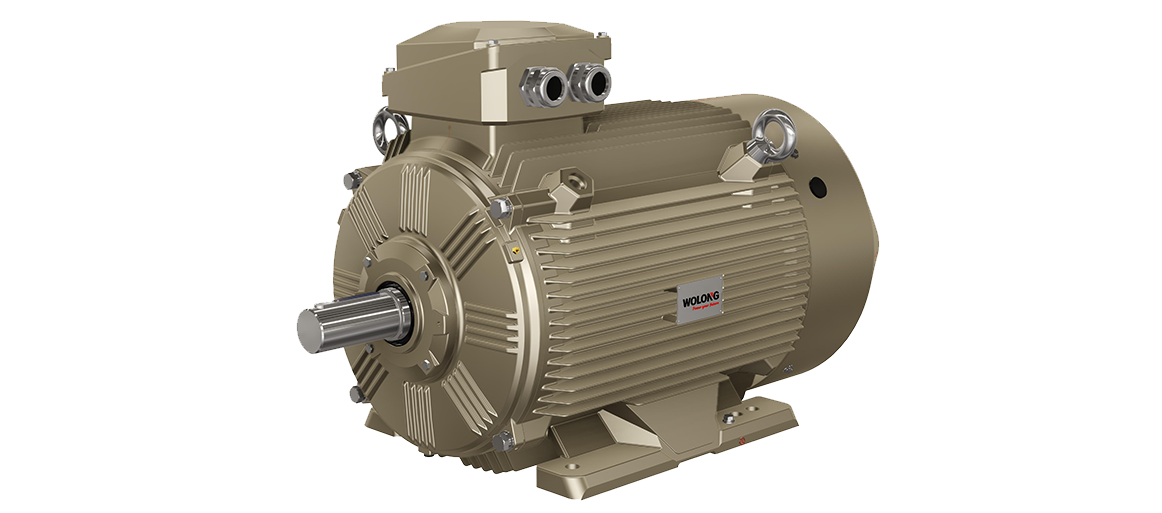

WEPM series VFD permanent magnet synchronous motors

WEPM series variable frequency speed-regulating permanent magnet synchronous motor are ultra-efficient permanent magnet motors. They are designed with rare earth permanent magnet materials and their efficiency conforms to IE4/IE5.

Product Features

Original design

Series products from original design
Excellent performance

Weak magnetic field speed expansion
Wide speed regulation range
Product features

High efficiency
Low noise, low vibration
Safety and reliability
Wide application

Water pumps, fans, compressors with speed control requirement

Working conditions

-15℃～+40℃

Ambient temperature
Monthly average ≤90%

Humidity
≤1000m.a.s.l.

Altitude

Specifications

Frame size	Aluminum: IEC56 ~ 160 Cast iron: IEC80 ~ 315
Rated power	0.18～315kW
Rated voltage	up to 690V standard 50Hz: 380V
Rated speed	3000, 1500, 1000rpm
Efficiency level	IE4, IE5
Duty	S1
Mounting option	B3, B5, B35, B14, V1
Insulation	Class F/B, △ T 80K
Protection grade	IP55
Cooling method	IC411, IC416
Standards	IEC 60034-1; IEC 60034-30-1
Certifications	CE
Applications	Widely used in pumps, fans, air compressors, machine tools, reducers, packaging machinery, mining machinery,construction machinery and other types of transmission machinery industry.
