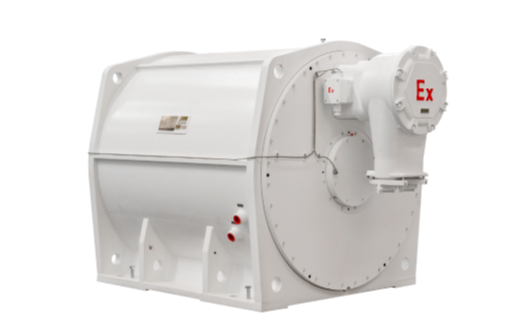

TYCP5 series low speed direct drive synchronous motors
Energy efficiency level reaching IE5. Capable of achieving S-curve start-up under low-speed heavy loads. Offering advantages such as low speed, high torque, high transmission efficiency etc.
Product Features
-
Independent R&DIndependently develop a series of products
-
Excellent PerformanceLow speed, high torque
High transmission efficiency
Stable operation, compact structure
-
Product FeaturesHigh efficiency
Low noise, low vibration
Safety and reliability
-
Wide ApplicationMixing tanks, belt conveyors, hoists, ball mills, crushing machinery, cooling towers, etc.
Working conditions
-
-15℃～+40℃Ambient temperature
-
Monthly average ≤90%Humidity
-
≤1000m.a.s.l.Altitude
Specifications
| Frame size | IEC180 ～560 |
| Rated power | 1.1～90kW |
| Rated voltage | 50Hz: 380V/660V |
| Rated speed | 25～500rpm |
| Efficiency level | IE5 |
| Mounting option | B3, V1 |
| Insulation | Class F/B, △ T 80K |
| Protection grade | IP55 |
| Cooling method | IC410, IC70W |
| Ambient temperature | 40℃，altitude 1000m.a.s.l |
| Standards | IEC 60034-1:2010 |
| Certifications | CE |
| Applications | Pumps, fans, air compressors, machine tools, reducers, packaging machinery, mining machinery,construction machinery and other types of transmission machinery industry. |
