Standard induction motors

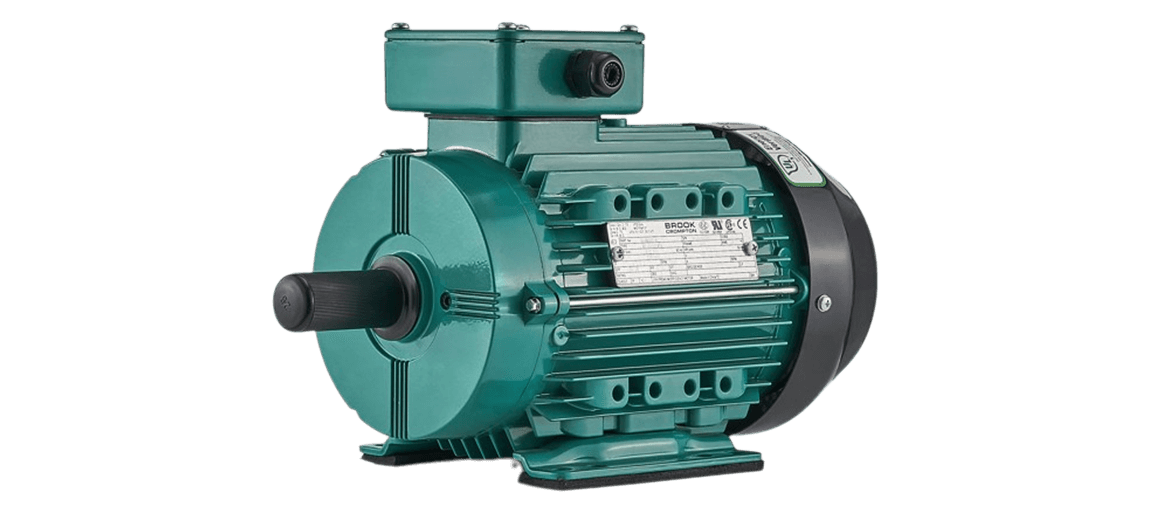

WPN series three-phase asynchronous motor
This series of motors adopt foreign advanced technology, spare parts can be easily replaced at home and abroad and can meet customers' needs under different working conditions.
Product features
-
Independent R&DIndependent research and development of series products
-
High performanceEnergy saving
Reliable operation
Convenient maintenance
-
Product featuresLow loss, low noise, low vibration
-
Wide applicationWater pumps, fans, textile machinery, construction machinery and other transmission machinery industries.
Working conditions
-
-15℃～+40℃Ambient temperature
-
Monthly average≤90%Humidity
-
≤1000m.a.s.l.Altitude
Specifications
| Frame size | Aluminum: NEMA 56 ~ 280/IEC 63 ~ 180 Cast iron: NEMA 140 ~ 440/IEC 90 ~ 315 |
| Rated power | 0.18kW(0.25HP)～150kW(200HP) |
| Rated voltage | 60Hz: 230V / 460V 50Hz: 200V / 400V (up to 600V) |
| Poles | 2, 4, 6, 8P |
| Efficiency level | IE3 (NEMA Premium) |
| Duty | S1 |
| Mounting option | B3, V5, V6, B5, V1, V3, B35 |
| Insulation | Class F /B, △ T 80K |
| Protection grade | IP55 |
| Cooling method | IC411 |
| Ambient temperature | 40℃，altitude 1000m.a.s.l |
| Standards | CSA C22.2 No. 100:14 (r2019); ANSI/UL 1004-1; ANSI/UL 1004-8 ; UL 1836 |
| Certifications | CC; cCSAus; Class I, Division 2, Groups A, B, C and D; Temperature Code: T3 |
| Applications | Water treatment, processing and manufacturing where they drive fans, pumps, compressors and conveyors. |
