Standard induction motors

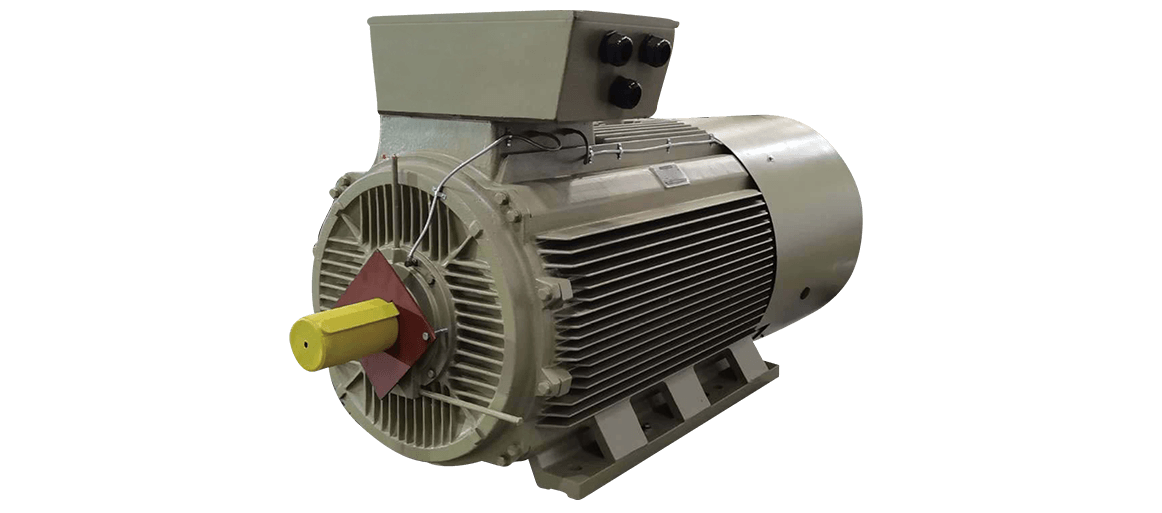

YE series low voltage high power asynchronous motor
High-efficiency, low-voltage and high-power. The installation size conforms to IEC standards and national standards, which is conducive to the matching of export equipment and the introduction of spare parts for equipment.
Product Features
-
Independent R&DIndependent research and development of series products
-
High performanceLow loss, low noise
Low vibration, safety
High cost performance
-
Product featuresGood appearance and convenient maintenance
-
Wide applicationPetroleum, chemical, mining, metallurgy, electric power and etc.
Working conditions
-
-15℃～+40℃Ambient temperature
-
Monthly average ≤90%Humidity
-
≤1000m.a.s.l.Altitude
Specifications
| Frame size | Cast iron: IEC 400 ~ 500 |
| Rated power | 200kW～1400kW |
| Rated voltage | 50Hz: 380V/660V |
| Poles | 2～10P |
| Efficiency level | IE3, IE4 |
| Service index | S1 |
| Mounting option | B3, V1 |
| Insulation | Class F /B, △ T 80K |
| Protection grade | IP55 |
| Cooling method | IC411 |
| Ambient temperature | 40℃，altitude 1000m.a.s.l |
| Standards | IEC 60034-1; IEC 60034-30-1; GB/T 755; GB 18613 |
| Certifications | CE, CCC |
| Applications | Pumps and Water Treatment; Compressors; Conveying Systems; Building Services. |
Typical applications
-
Smart BuildingsAs a leading enterprise of motor and drive technology in building industry, Wolong's products cover the whole industrial chain from HVAC, Refrigeration, water supply to sewage treatment, forming a complete product chain including motors, drives, transformers, power supply, system energy saving and service.Learn more
-
Green IndustryAccording to the report of the International Energy Agency (IEA), industrial energy consumption accounts for 37% of global total energy consumption and 24% of global carbon trioxide emissions.Learn more
