Standard induction motors

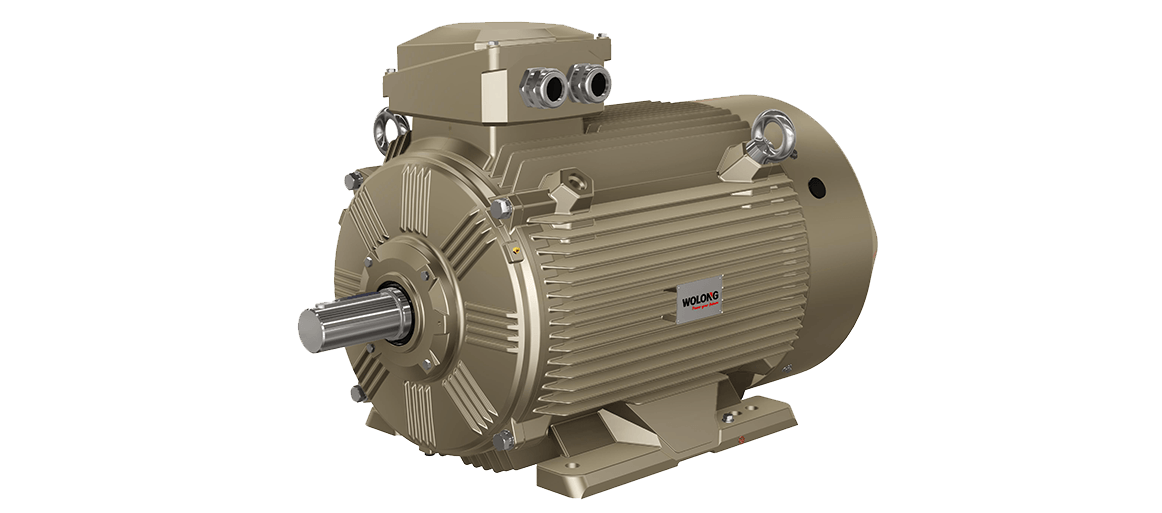

WE series three-phase asynchronous motors

The unique design of the series of motors has an optimized cooling and advanced insulation system, reliability assurance, high efficiency and energy saving, easy in maintenance and is in line with IEC energy efficiency standards.

Features

Original design

Series products from original design
High performance

Good appearance
Low noise, low vibration
Safe and reliable
Product features

Advanced insulation system
High efficiency
Good salt spray resistance
Wide application

Water pumps, fans, machine tools, reducers, packaging machinery, mining machinery, paper industry, food machinery, construction machinery etc.

Working conditions

-15℃～+40℃

Ambient temperature
Monthly average ≤90%

Humidity
≤1000m.a.s.l.

Altitude

Specifications

Frame size	Aluminum: IEC63 ~ 160 Cast iron: IEC80 ~ 355
Rated power	0.18～375kW
Rated voltage	up to 690V standard 50Hz: 400V
Poles	2, 4, 6, 8P
Efficiency level	IE3, IE4, IE5
Duty	S1
Mounting option	B3, B5, B35, B14, V1
Insulation	Class F /B, △ T 80K
Protection grade	IP55
Cooling method	IC411
Ambient temperature	40℃，altitude 1000m.a.s.l
Standards	IEC 60034-30-1; IEC 60072-1
Certifications	CE, CCC
Applications	Compressors, pumps, cranes, lifts, fans and gearboxes, for building /construction, textiles, marine equipment, quarrying, water, sewage and pulp & paper industries.
