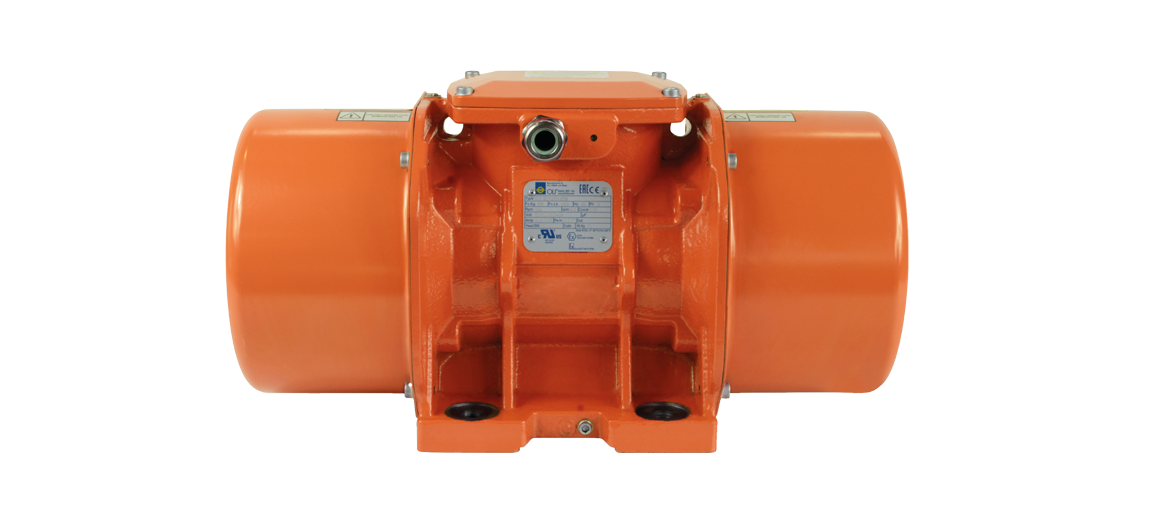

Vibration motors

MVE standard series


Vibration motor is widely used in vibrating screen, conveyor ,vibration feeder, compactor, casting excavator, fluid bed, spiral lift and other equipments.The centrifugal force ranging from 3 to 40000kg.

Product Features

High quality

High quality raw materials, branded bearings, high strength housing
High efficiency

Optimal power and weight ratio, S1 continuous duty, best electrical design.
High reliability

Special grease protection design, PTC thermistor, IP66.
Flexibility

Easy to adjust, optional multi-voltage and frequency, easy connection, & multiple installation hole

Operating Condition

-20℃～+40℃

Ambient temperature
Monthly average ≤90%

Relative humidity
≤1000m.a.s.l.

Altitude

Product Parameters

Frame material	Aluminum enclosure：MICRO-SIZE50 Iron enclosure：SIZE60-SIZE130
Rated power	0.03～30kW
Rated voltage	220/380V; 380/660V
Rated speed	50Hz: 750 ~ 3000rpm, 60Hz: 900 ~ 3600rpm
Duty	S1
Insulation	Class F
Protection grade	IP66
Cooling method	IC410
Standards	GB, IEC
Certifications	CE, CCC, ATEX ExII3D and ETL, Class II, Division 2
Applications	Vibration motor is widely used in vibrating screen, conveyor ,vibration feeder, compactor, casting excavator, fluid bed, spiral lift and other equipments.

Typical applications

Green Industry

According to the report of the International Energy Agency (IEA), industrial energy consumption accounts for 37% of global total energy consumption and 24% of global carbon dioxide emissions.

Learn more

Related products

YBZD series vibration source explosion-proof motor

This flameproof motor is for underground coal mine gas environment (non-mining face), with methane or coal dust flammable gas or steam and air formed explosive mixing place.

MVE-SV screen vibrators

SV or XY series vibration motor is a long motor, the working principle is the same as the standard vibration motor, fixed on the equipment through the foot. They are 4-pole motors with different operating voltages and can be controlled by frequency converter. The centrifugal force ranging from 3500 to 8000kg. The centrifugal force can be adjusted for each model,and widely used in quarry, mining, drilling fluid recovery system on the material separation, vibration screening.

MVE-FD flanged vibrators

The MVE-FD flanged drive series vibration motors have centrifugal force ranging from 4500 to 25000kg, and the pole is 6 and 8 , which is the ideal choice to replace the traditional centrifugal force.The MVE-FD flanged drive series vibration motors consist of a robust casting frame designed by finite element analysis, inside which is a motor with masses at both ends of the shaft. They are installed on both sides of the vibration equipment, and the two side plate motors are connected through a coupling in the middle,and mainly used in fixed station, mobile crushing station material feeding, classification and dehydration.
