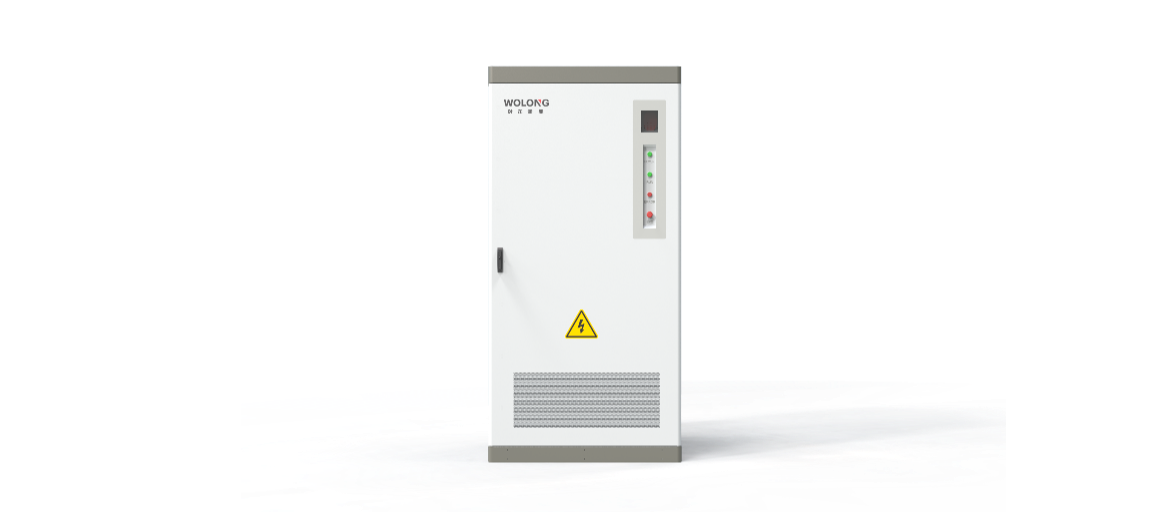

Commercial and Industrial ESS

WL-FB-100kW/215kWh

Our C&I ESS features an integrated design that combines the PCS and battery into a single cabinet. This product is highly flexible and expandable to meet the diverse application needs of various clients.

Main Advantages

Safe and Reliable

No battery parallel connection for system safety
Flexible and Scalable

Intelligent liquid cooling with higher energy density
Cost Savings

All-in-one design, highly integrated for easy transportation
Intelligent Management

Intelligent platform supporting efficient operation monitoring

Operating Conditions

-20℃~50℃(>45℃ derating)

Operating Temperature

Specifications

Topology	Transformerless
Dimensions(WHD)*	125012502500mm
Weight*	2400kg
Cooling method	Air cooling
Elimination mode	Aerosol
Operating humidity	5-95%RH(without condensation)
Protection grade	IP55
Communication mode	Ethernet,RS485
Rated power	100kW
Rated voltage	400VAC
