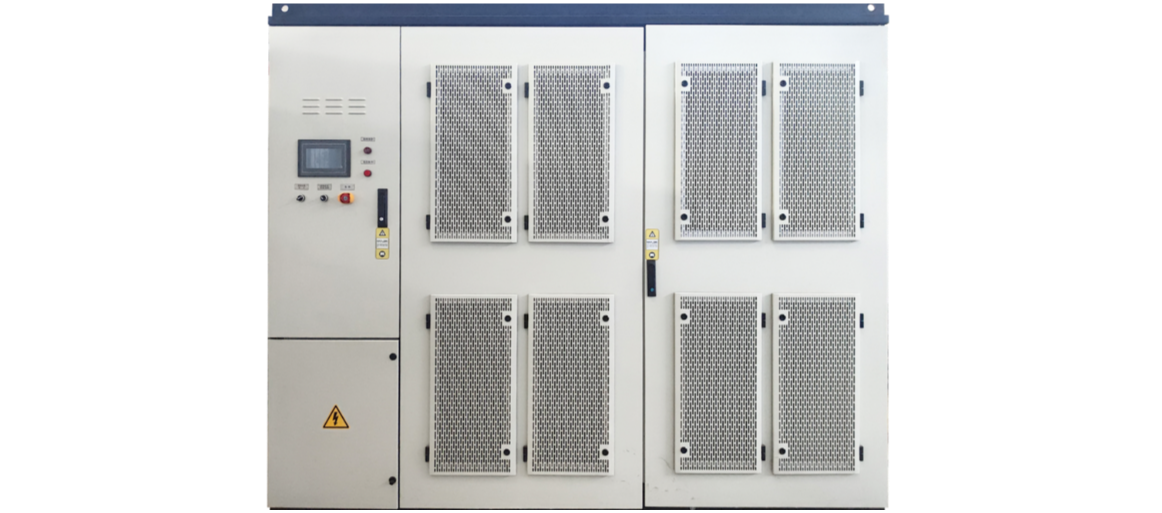

5000 series integrated type high voltage VFD
The product is further optimized and upgraded on the basis of compact structure of the original 5000 series, and the integrated design of the complete machine achieves higher power density, smaller floor space, higher reliability, and easier arrangement and maintenance. The variable frequency system adopts voltage source multi-level topology.The power cell is equipped with dry type metalized film capacitors. With high efficiency, high power factor, no special requirements for the motor and other characteristics, widely used in fans, pumps,compressors and other loads.
Product Features
-
Optimized structureCompact structure, integrated desig, high power density
-
Convenient arrangement and maintenanceSmaller floor space, easier arrangement and maintenance
-
Film capacitorsSelect dry type metalised film capacitors
-
High performanceHigh efficiency, high power factor, no special requirements for the motor
Operating Conditions
-
0℃～+40℃Ambient air temperature
-
≤90% (at 25℃)Monthly average humidity
-
≤1000m.a.s.l.Altitude
Product Parameters
| Mode | RMVC/WD(5000 Series) |
| Capacity Range | 0kVA ~ 3500kVA【 10kVas example】 |
| Rated Voltage | 6/10kV |
| Weight | 2700kg/3100kg/4300kg/5300kg |
| Dimension: (10kV as example) | 250 ~ 500kVA：1800*1500*2393（W*D*H mm） 535 ~ 1250KVA：2100*1500*2431（W*D*H mm） 1400 ~ 1750kVA：2400*1500*2631（W*D*H mm） 2000 ~ 2500kVA：2700*1700*2665（W*D*H mm） 2750 ~ 3000kVA：2700*1700*2665（W*D*H mm） 3125 ~ 3500kVA：3200×1800×2665（W*D*H mm） |
| IGBT Voltage | 1700V |
| Transformer Type | Dry type phase shifting transformer |
