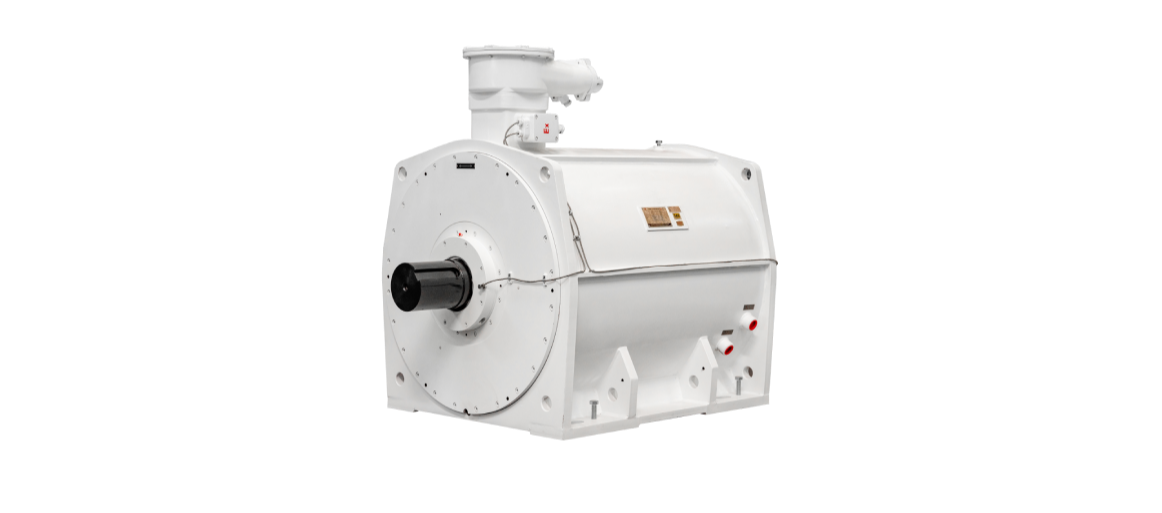

TBVF&TYVF series low-speed permanent magnet direct-drive synchronous motors

Compared with the traditional driving system, it directly drives the load, with compact structure and convenient installation, which greatly saves the installation space; The efficiency reaches Grade 1 energy efficiency (IE5), and the comprehensive energy saving rate reaches over 30%; Starting with low frequency and large torque, the starting torque can reach 2.5 times, which solves the problem of starting under heavy load; Adopt the design and technology that maximize the performance of permanent magnet materials, and greatly reduce the risk of demagnetization and aging.

Product Features

High torque density

Adopt water cooling structure
High torque density
Excellent performance

Low vibration & noise
High efficiency: Grade 1 (IE5);
Wide efficiency range
Strong overload capacity

Up to 2.5 times overload capacity
Heavy load start
Easy maintenance

Simpler structure to realize less maintenance, reduced downtime and cost.

Working conditions

-20℃ ~+40℃ (Standard)
-40℃ ~+60℃ (Customized)
Ambient air temperature
≤90% (at 25℃)
Humidity
≤1000m.a.s.l. (Standard)
1000m.a.s.l.~5000m.a.s.l.(Customized)
Altitude

Specifications

Cooling method	IC37W, IC46W
Power range	132 ~ 2000kW(180 ~ 2200HP)
Frame size	H560 ~ 1120
Speed range	0 ~ 200rpm
Frequency	5 ~ 150Hz
Voltage range	660 ~ 1140V
Protection grade	Up to IP66
Explosion proof type	Exdb
Mounting option	B3, B35, V1
Bearing	Rolling bearing
Standards	GB, IEC
Certifications	CCC, MA
Applications	Drive various general-purpose machinery, such as belt conveyors, scraper conveyors, mills, mixers, hoists, and other mechanical equipment.
